Efficient, Ergonomic Lifting for Concrete Plants & Building Supply Yards
The Vacuum-Workstation is a high-performance material handling solution built for concrete manufacturers and hardscape suppliers. Designed to lift, move, and palletize up to 250 kg (550 lbs) with ease, it boosts productivity while drastically reducing operator fatigue.
Available in 5 different configurations, see below.
Key Features:
Lift Up to 250 kg (550 lbs) – Ideal for concrete pavers, wet cast, blocks, and more
Fast & Precise Handling – Speed up palletizing and order picking with millimeter accuracy
Ergonomic Design – Near weightless operation reduces strain on the back, neck, and shoulders
Dust-Resistant Tech – Industrial-grade vacuum pump and filter perform reliably in dusty environments
Perfect for Daily Use – Built for sorting, stacking, and shipping in busy supply yards and production lines
Built for:
Concrete production plants
Hardscape distribution yards
Stone and block palletizing
Order picking and staging
Crane Mounting Options for Vacuum-Workstation

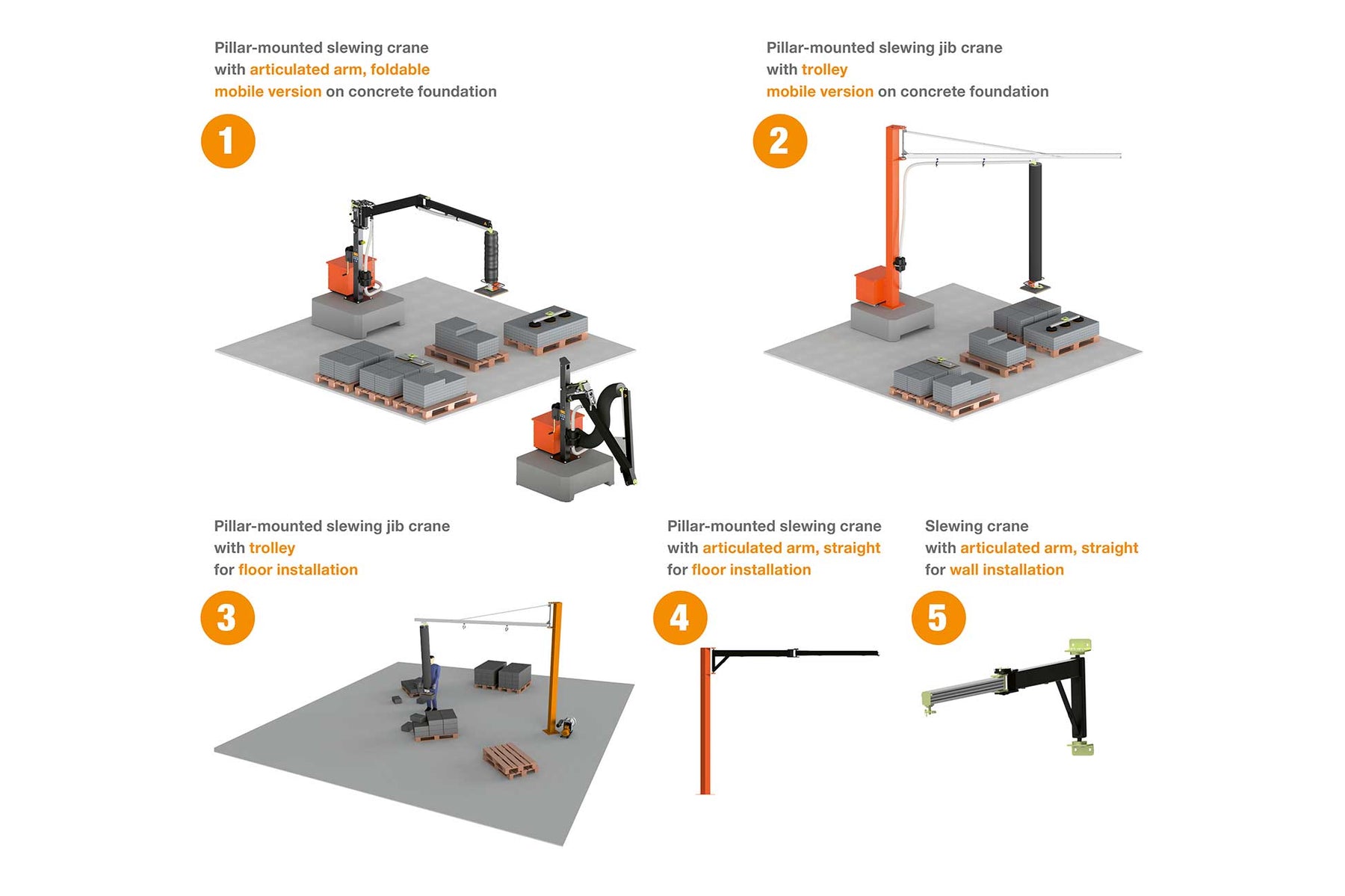

To match the needs of different facilities and material handling workflows, the Vacuum-Workstation is available in five versatile crane configurations. Whether you're optimizing for flexibility, space constraints, or permanent placement, there's a solution to fit your operation.

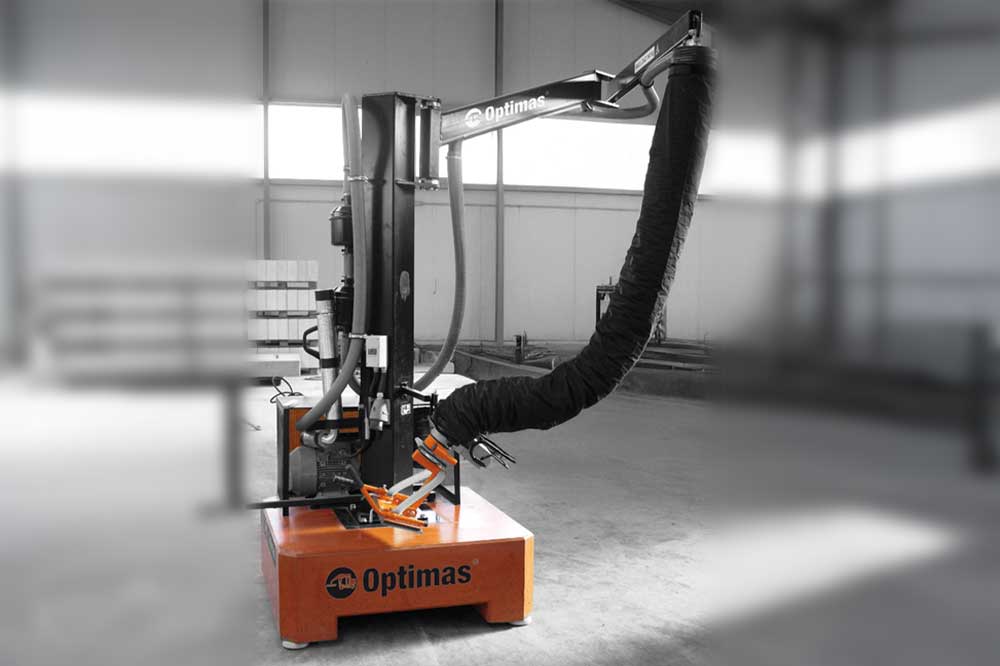

1. Mobile Pillar Crane with Articulated Foldable Arm
Articulated arm design for flexibility and compact storage
Foldable for tight work zones or where space-saving is critical
Mobile base on a concrete foundation for relocation if needed
Ideal for yards that need flexibility and maneuverability in their layout
2. Mobile Pillar Mounted Jib Crane with Trolley Arm
Straight trolley beam allows for long, smooth linear movement
Mobile version on a concrete foundation
Perfect for environments where a straight arm offers a better working range

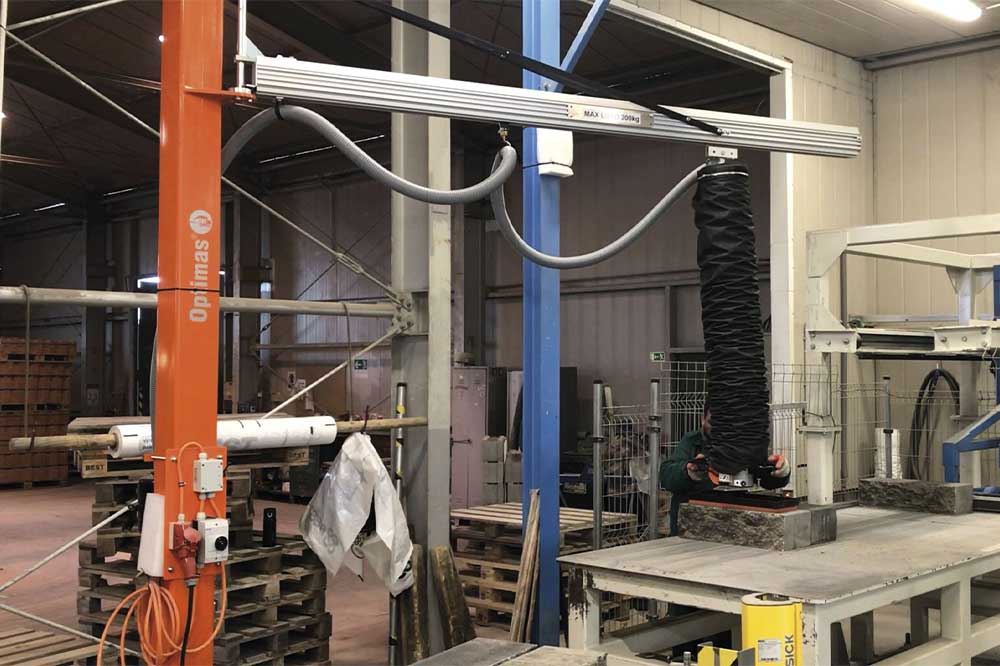

3. Fixed Floor & Pillar Mounted Jib Crane with Trolley Arm
Permanent floor-mounted pillar
Straight trolley rail for direct, side-to-side coverage
Excellent for high-frequency palletizing stations

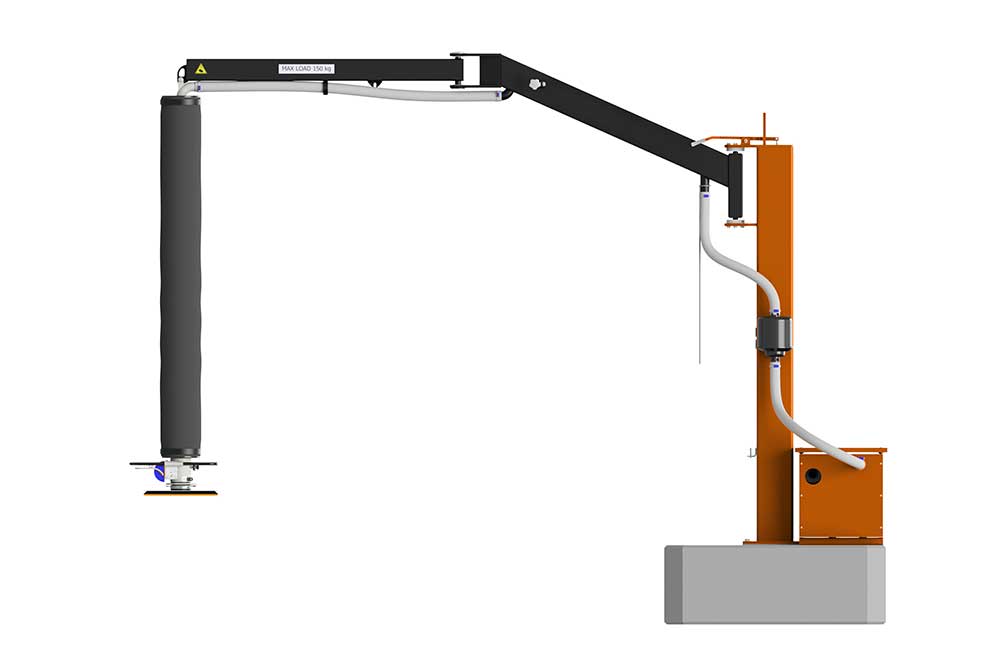

4. Fixed Floor & Pillar Mounted Crane with Articulated Straight Arm
Articulated straight arm for a mix of reach and horizontal flexibility
Mounted directly to the floor
Great for constrained spaces that still require reach flexibility
5. Wall-Mounted Crane with Articulated Straight Arm
Designed for wall installation to save floor space
Articulated arm offers smooth, precise horizontal movement
Best for shops or plants with limited floor space but vertical structure support
Each system is engineered to handle loads up to 250 kg (550 lbs) with ergonomic ease and can be paired with Optimas vacuum lifting technology for efficient, dust-resistant operation.
Need help choosing the best setup? Call 860-870-8665 for tailored recommendations.
