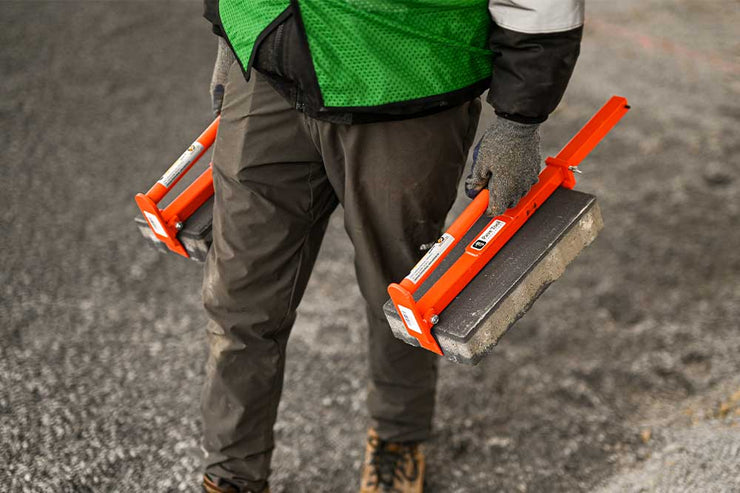

The Paver Clamp is an easy to use manual hand clamp. Picks bricks 6-9 in quantity, pavers and small slabs.
Benefits:
- Adjusts 8'' - 19''
- Rated for 40 lbs.
- 7 year warranty
You may also like
A clamp specifically designed to pick Techo Brandon Wall & Raffinato.
- Holds up to 100 lbs.
- Adjusts to 3 different sizes (S,M,L)
Works with Techo-Bloc Brandon Wall (3" and 7") and Raffinato (3" and 7")
| Clamp | Item# | Adjusts | Machine/Hand | Latching | Clamp Weight | Weight Rating |
|---|---|---|---|---|---|---|
| BL 3000 | NT031 | 5"-53.5" | Machine | Self-Locking | 200 Pounds | 3,000 Pounds |
| BL 1300 | 52318 | 2"-23" | Machine | Auto-Latching | 73 Pounds | 1,300 Pounds |
| BL 980 | NT042 | 0"-38" | Machine | Manual-Latching | 72 Pounds | 980 Pounds |
| BL 980 Accessories | ||||||
| Boulder Grab | NT042b | 0"-38" | Machine | Manual-Latching | 124.5 Pounds | 980 Pounds |
| I-Spacer | NT046 | 11" Long | ||||
| Wedge | NT047 | |||||
| BL 850 | NT083 | 0"-16.5" | Machine | Auto-Latching | 55 Pounds | 850 Pounds |
| BL 450 | NT021 | 31"-51" | Machine | Auto-Latching | 42 Pounds | 450 Pounds |
| BL 450 Accessories | ||||||
| Multi Block Clamp | NT033 | Machine | Auto-Latching | 1,200 Pounds | ||
| Wedge | NT047 | |||||
| BL 180 | NT022 | 7"-18" | Machine/ Hand | Self-Locking | 9 Pounds | 180 Pounds |
| BL 100 | NT071 | 7.75", 11", 12.5" | Hand | Self-Latching | 4 Pounds | 100 Pounds |
The Quick-E-BL 180 efficiently moves a single wall block from pallet to setting bed or installation area.
- Quickly adjusts from 7" - 18"
- Holds up to 180 lbs.
- Can be carried by hand, with the help of the Quick-E-Ergo Assist (sold separately) or used with an excavator.
Pairs well with: Quick-E-Adjustable Chain
| Clamp | Item# | Adjusts | Machine/Hand | Latching | Clamp Weight | Weight Rating |
|---|---|---|---|---|---|---|
| BL 3000 | NT031 | 5"-53.5" | Machine | Self-Locking | 200 Pounds | 3,000 Pounds |
| BL 1300 | 52318 | 2"-23" | Machine | Auto-Latching | 73 Pounds | 1,300 Pounds |
| BL 980 | NT042 | 0"-38" | Machine | Manual-Latching | 72 Pounds | 980 Pounds |
| BL 980 Accessories | ||||||
| Boulder Grab | NT042b | 0"-38" | Machine | Manual-Latching | 124.5 Pounds | 980 Pounds |
| I-Spacer | NT046 | 11" Long | ||||
| Wedge | NT047 | |||||
| BL 850 | NT083 | 0"-16.5" | Machine | Auto-Latching | 55 Pounds | 850 Pounds |
| BL 450 | NT021 | 31"-51" | Machine | Auto-Latching | 42 Pounds | 450 Pounds |
| BL 450 Accessories | ||||||
| Multi Block Clamp | NT033 | Machine | Auto-Latching | 1,200 Pounds | ||
| Wedge | NT047 | |||||
| BL 180 | NT022 | 7"-18" | Machine/ Hand | Self-Locking | 9 Pounds | 180 Pounds |
| BL 100 | NT071 | 3 Adjust. notches | Hand | Self-Latching | 4 Pounds | 100 Pounds |
The Quick-E-Block Clamp can grab multiple blocks from your pallets just as they are delivered to the job site.
Scroll Down to View Videos Please
A 3-man crew with no Geo-Grid can install about 300 - 500 sf of wall block a day.
Pairs well with: Quick-E-Adjustable Chain
Quick-E-BL 450 Reinforced Replacement Pads Available.
Wedge sold Separately.
| Clamp | Item# | Adjusts | Machine/Hand | Latching | Clamp Weight | Weight Rating |
|---|---|---|---|---|---|---|
| BL 3000 | NT031 | 5"-53.5" | Machine | Self-Locking | 200 Pounds | 3,000 Pounds |
| BL 1300 | 52318 | 2"-23" | Machine | Auto-Latching | 73 Pounds | 1,300 Pounds |
| BL 980 | NT042 | 0"-38" | Machine | Manual-Latching | 72 Pounds | 980 Pounds |
| BL 980 Accessories | ||||||
| Boulder Grab | NT042b | 0"-38" | Machine | Manual-Latching | 124.5 Pounds | 980 Pounds |
| I-Spacer | NT046 | 11" Long | ||||
| Wedge | NT047 | |||||
| BL 850 | NT083 | 0"-16.5" | Machine | Auto-Latching | 55 Pounds | 850 Pounds |
| BL 450 | NT021 | 31"-51" | Machine | Auto-Latching | 42 Pounds | 450 Pounds |
| BL 450 Accessories | ||||||
| Multi Block Clamp | NT033 | Machine | Auto-Latching | 1,200 Pounds | ||
| Wedge | NT047 | |||||
| BL 180 | NT022 | 7"-18" | Machine/ Hand | Self-Locking | 9 Pounds | 180 Pounds |
| BL 100 | NT071 | 3 Adjust. notches | Hand | Self-Latching | 4 Pounds | 100 Pounds |
INSTRUCTIONS: Use the Quick-E-Block Clamp by pulling the bottom pin to adjust to the clamp width. The coupler is held in place with a second pin - it should be centered between the two clamping pads. Hook a rated chain, cable or strap to your machine and the clamp. You’re now ready to lay block with minimal effort! Quickly pick up on the chain manually or with your bucket to clamp the block. Set the block about 6” from the those last laid then pick up slowly on the chain to pick the clamp off the block. Now simply slide the blocks into place. When laying multiple cells with tapered sides, one block will be reversed. Simply spin the block around and slide it into place. You’re never lifting the block - just slide it.
NOTE: A hard hat should be worn at all times. Stay out of the swing zone and never get under the clamped block.
The Quick-E-Adjustable Chain is a 5ft long multi-use chain!
- Tagged (OSHA compliant)
- Rated for 4,300lbs.
- Easily adjust to whatever length you need
- Multiple ways to attach/hook
A clamp that Pick Slabs Vertically right off the Pallet as just one of its features!
- Use with an excavator or fork lift
- Self-latching
- Pick slabs and step treads
- Adjusts from 0" - 16 1/2"
- Holds up to 850 lbs
- Clamp itself weighs 53 lbs.
Pairs well with: Quick-E-Adjustable Chain
Quick-E-BL 850 Reinforced Replacement Pads Available.
| Clamp | Item# | Adjusts | Machine/Hand | Latching | Clamp Weight | Weight Rating |
|---|---|---|---|---|---|---|
| BL 3000 | NT031 | 5"-53.5" | Machine | Self-Locking | 200 Pounds | 3,000 Pounds |
| BL 1300 | 52318 | 2"-23" | Machine | Auto-Latching | 73 Pounds | 1,300 Pounds |
| BL 980 | NT042 | 0"-38" | Machine | Manual-Latching | 72 Pounds | 980 Pounds |
| BL 980 Accessories | ||||||
| Boulder Grab | NT042b | 0"-38" | Machine | Manual-Latching | 124.5 Pounds | 980 Pounds |
| I-Spacer | NT046 | 11" Long | ||||
| Wedge | NT047 | |||||
| BL 850 | NT083 | 0"-16.5" | Machine | Auto-Latching | 55 Pounds | 850 Pounds |
| BL 450 | NT021 | 31"-51" | Machine | Auto-Latching | 42 Pounds | 450 Pounds |
| BL 450 Accessories | ||||||
| Multi Block Clamp | NT033 | Machine | Auto-Latching | 1,200 Pounds | ||
| Wedge | NT047 | |||||
| BL 180 | NT022 | 7"-18" | Machine/ Hand | Self-Locking | 9 Pounds | 180 Pounds |
| BL 100 | NT071 | 3 Adjust. notches | Hand | Self-Latching | 4 Pounds | 100 Pounds |
